Emba-Flex® – The Retention Packaging
- high-level protection for the most varied products and contours
- reduction of packaging diversity by up to 90%
- transport boxes with crash-lock base guarantee fast handling
- quick fastening avoids box gluing
- reduction of process costs (procurement, storing, shipment)
- environment-friendly, can be disposed of with waste paper
- reusable (e.g. for repair services)
- professional appearance
- economical due to standard program (no tool costs)
The method

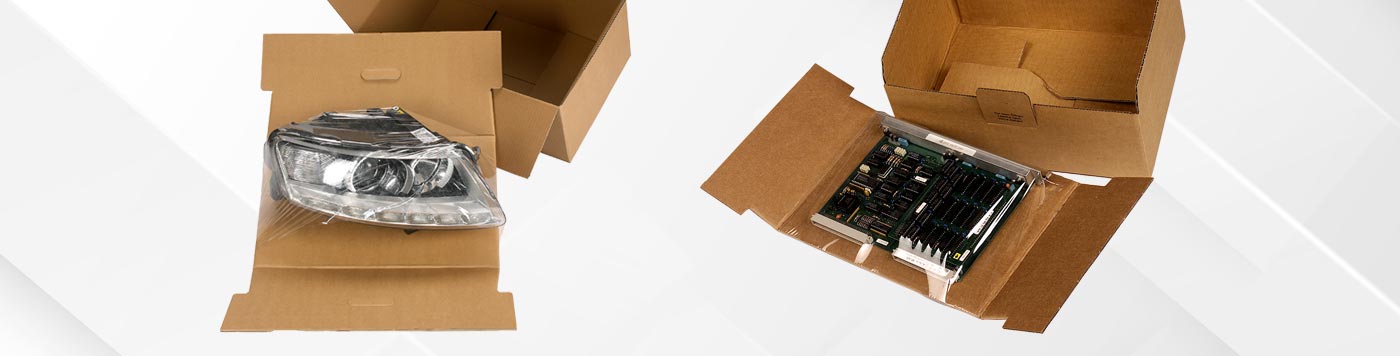

The special stretch mechanism ensures that the film fixes the product firmly to the corrugated cardboard format, so avoiding any slipping. The highly flexible but practically tear-free stretch film clings perfectly to the different product contours. This reduces your packaging diversity by up to 90%. The special film is highly flexible and has unprecedented shrink behaviour after stretching.
Even when stretched to an enormous extent the film almost returns back into it’s original shape without a decrease in retention force.
Product video Emba-Flex®
The immediate delivery programm
| Maximum product size | Article-Code | Maximum Product Size |
|---|---|---|
| 100 x 100 x 40 mm | FL 101004 | ca. 0,5 kg |
| 120 x 80 x 40 mm | FL 120804 | ca. 0,5 kg |
| 120 x 90 x 50 mm | FL 120905 | ca. 0,8 kg |
| 140 x 80 x 40 mm | FL 140804 | ca. 0,5 kg |
| 140 x 100 x 40 mm | FL 141004 | ca. 1,0 kg |
| 150 x 150 x 40 mm | FL 151504 | ca. 1,5 kg |
| 150 x 150 x 60 mm | FL 151506 | ca. 1,5 kg |
| 160 x 100 x 20 mm | FL 161002 | ca. 0,5 kg |
| 160 x 120 x 40 mm | FL 161204 | ca. 0,5 kg |
| 160 x 120 x 50 mm | FL 161205 | ca. 0,5 kg |
| 160 x 120 x 100 mm | FL 161210 | ca. 1,5 kg |
| 180 x 90 x 60 mm | FL 180906 | ca. 0,8 kg |
| 180 x 100 x 40 mm | FL 181004 | ca. 1,0 kg |
| 180 x 100 x 60 mm | FL 181006 | ca. 1,0 kg |
| 190 x 160 x 60 mm | FL 191606 | ca. 1,0 kg |
| 200 x 200 x 60 mm | FL 202006 | ca. 1,5 kg |
| 200 x 200 x 80 mm | FL 202008 | ca. 1,5 kg |
| 220 x 150 x 60 mm | FL 221506 | ca. 1,5 kg |
| 220 x 150 x 80 mm | FL 221508 | ca. 1,5 kg |
| 230 x 150 x 20 mm | FL 231502 | ca. 1,0 kg |
| 230 x 180 x 60 mm | FL 231806 | ca. 1,5 kg |
| 240 x 100 x 40 mm | FL 241004 | ca. 1,5 kg |
| 250 x 250 x 60 mm | FL 252506 | ca. 2,0 kg |
| 250 x 250 x 80 mm | FL 252508 | ca. 2,0 kg |
| 280 x 160 x 70 mm | FL 281607 | ca. 2,0 kg |
| 280 x 180 x 120 mm | FL 281812 | ca. 2,5 kg |
| 290 x 260 x 60 mm | FL 292606 | ca. 2,5 kg |
| 300 x 90 x 50 mm | FL 300905 | ca. 0,8 kg |
| 300 x 200 x 70 mm | FL302007 | ca 2,5 kg |
| 300 x 200 x 100 mm | FL 302010 | ca. 2,5 kg |
| 300 x 220 x 140 mm | FL 302214 | ca. 2,5 kg |
| 300 x 300 x 80 mm | FL 303008 | ca. 3 kg |
| 310 x 210 x 40 mm | FL 311204 | ca. 2,5 kg |
| 310 x 220 x 40 mm | FL 312204 | ca. 3 kg |
| 340 x 200 x 120 mm | FL 342012 | ca. 2 kg |
| 340 x 250 x 50 mm | FL 342505 | ca. 3,5 kg |
| 350 x 200 x 80 mm | FL 352008 | ca. 2 kg |
| 350 x 250 x 40 mm | FL 352504 | ca. 2 kg |
| 360 x 240 x 100 mm | FL 362410 | ca. 2,5 kg |
| 360 x 260 x 40 mm | FL 362604 | ca. 3,5 kg |
| 380 x 250 x 80 mm | FL 382508 | ca. 3 kg |
| 400 x 200 x 100 mm | FL 402010 | ca. 3 kg |
| 400 x 250 x 100 mm | FL 402510 | ca. 3,5 kg |
| 400 x 300 x 50 mm | FL 403005 | ca. 4,5 kg |
| 400 x 300 x 60 mm | FL 403006 | ca. 2,5 kg |
| 400 x 320 x 110 mm | FL 403211 | ca. 5 kg |
| 470 x 300 x 50 mm | FL 473005 | ca. 4,5 kg |
| 500 x 320 x 150 mm | FL 503215 | ca. 5 kg |
| 500 x 400 x 100 mm | FL 504010 | ca. 5 kg |
| 510 x 230 x 50 mm | FL 512305 | ca. 2,5 kg |
| 510 x 300 x 50 mm | FL 513005 | ca. 2,5 kg |
