Application

Fragile goods of up to 35.0 kg.

Features

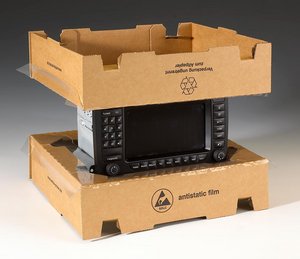

The product is suspended between two cushions
during the transport.
Reusable packaging system.

Advantages

Highest protection level against shock and vibration.
Storage space reduction as the packaging can
quickly be set upright.

Emba-Swing®

The suspension packaging

  • high-level protection for fragile products against shock and vibration
  • products are transported as if they were “floating on air”
  • quick handling
  • storage space reduction compared with foam solutions
  • reduction of process costs (procurement, storing, shipment)
  • reusable
  • environment-friendly, can be disposed of with waste paper
  • professional appearance
  • economical due to standard program (no tool costs)

The method

The highly flexible but practically tear-free stretch film clings perfectly to the different product contours. Clamping between two suspension cushions means that the product will be stored as if it was
“floating on air” during the transport. Even if the box is dropped on its side walls the product will remain in position.

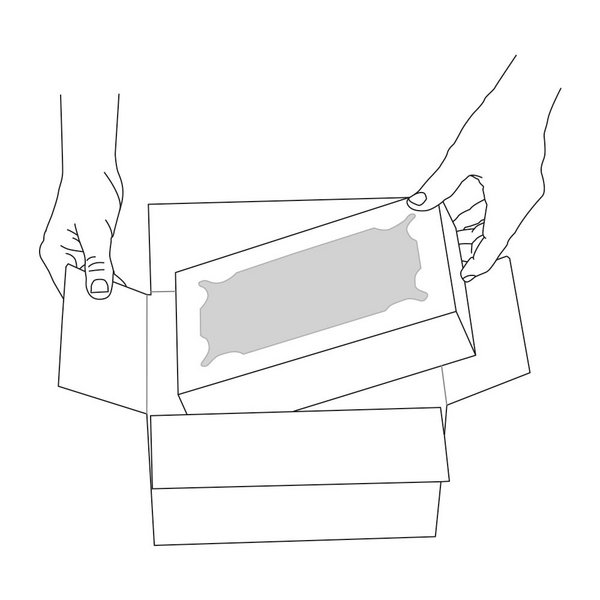

Insert cushion ...
then your product ...

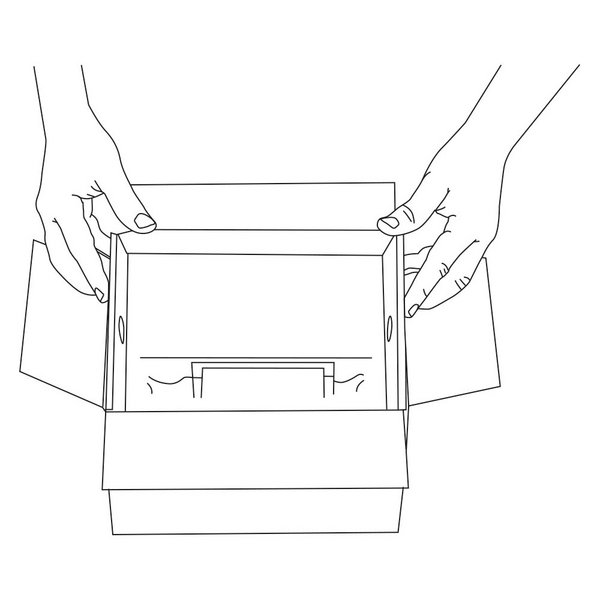

2nd cushion on top ...

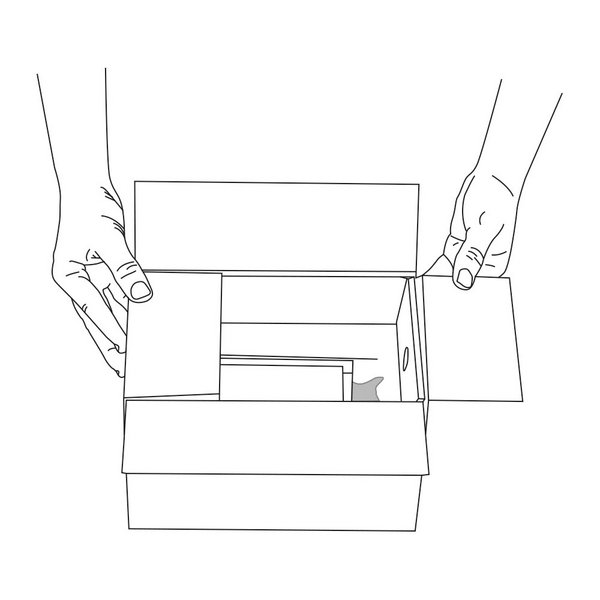

push down the lid, ready !

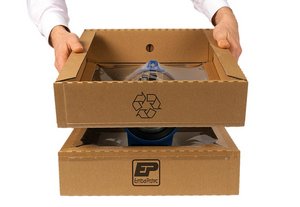

Application Examples

Emba-Swing® adapts optimally to the most varied product contours like a second skin. New products from your company can often be packed immediately with existing packaging sizes. Also products of different sizes fit into the same-sized packaging solution.  Also product accessories can be packed securely in accessory compartments. Whether it’s a manual, cables or remote controls, everything is securely fixed in position. In addition to our immediate delivery program listed in the table below we also offer existing special packaging as well as new developments according
to your individual needs.

The immediate delivery program

Maximum product surface (mm) Article Code Height of cushion Max. product weight

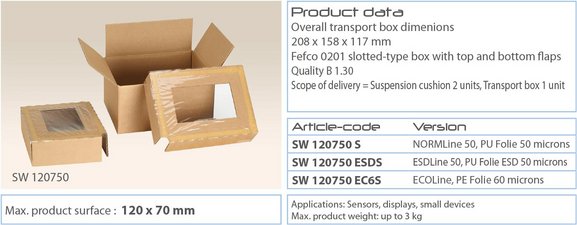

120 x 70 mm SW 120750 50 mm ca. 3,0 kg

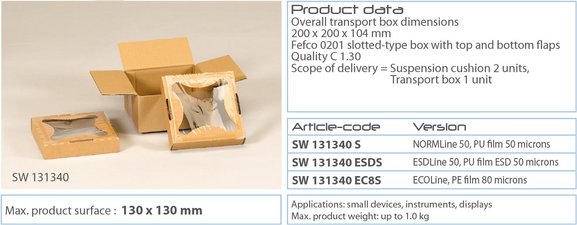

130 x 130 mm SW 131340 40 mm ca. 1,0 kg

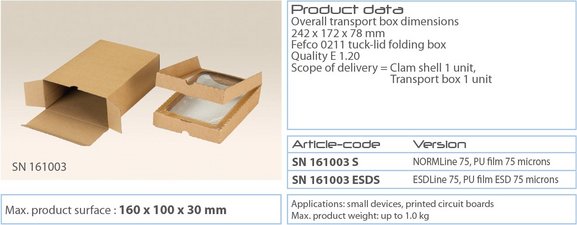

160 x 100 mm SN 161003 30 mm ca. 1,0 kg

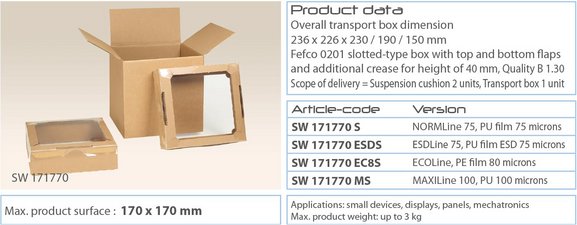

170 x 170 mm SW 171770 70 mm ca. 3,0 kg

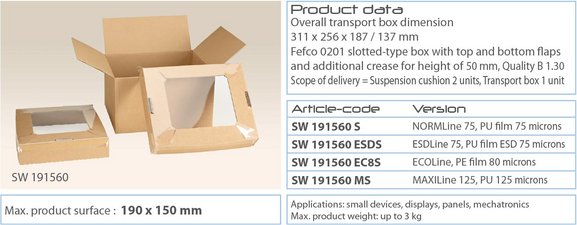

190 x 150 mm SW 191560 60 mm ca. 3,0 kg

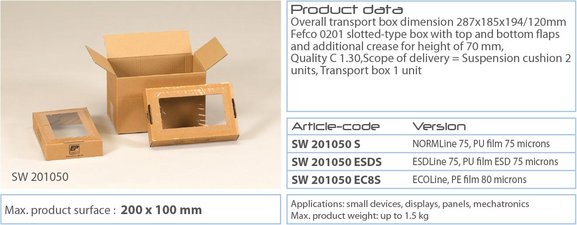

200 x 100 mm SW 201050 50 mm ca. 1,5 kg

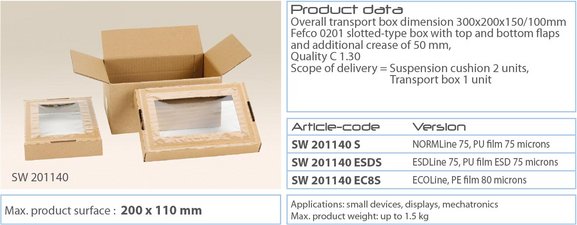

200 x 110 mm SW 201140 40 mm ca. 1,5 kg

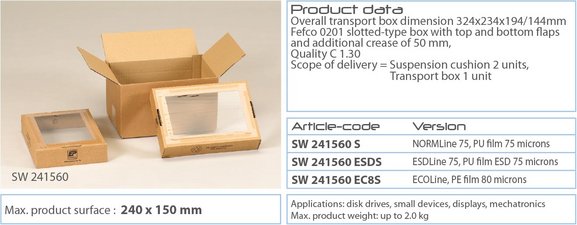

240 x 150 mm SW 241560 60 mm ca. 2,0 kg

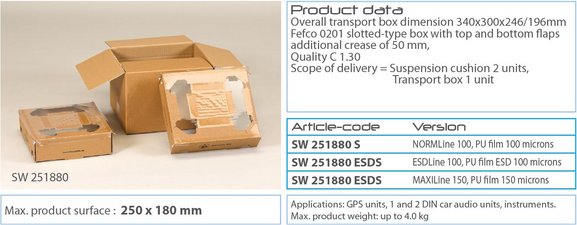

250 x 180 mm SW 251880 80 mm ca. 4,0 kg

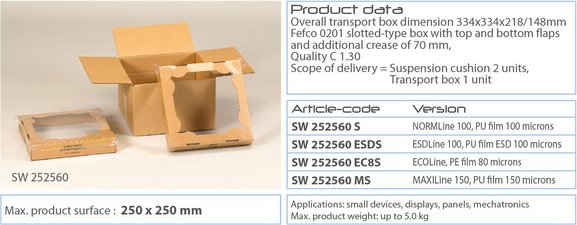

250 x 250 mm SW 252560 60 mm ca. 5,0 kg

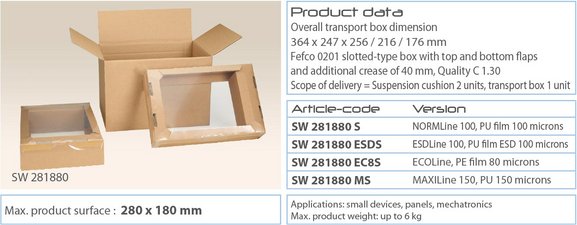

280 x 180 mm SW 281880 80 mm ca. 6,0 kg

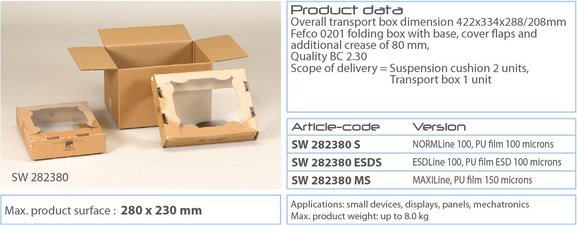

280 x 230 mm SW 282380 80 mm ca. 8,0 kg

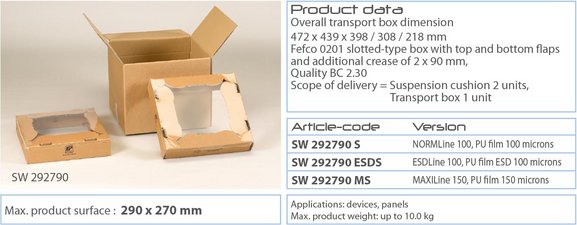

290 x 270 mm SW 292790 90 mm ca. 10 kg

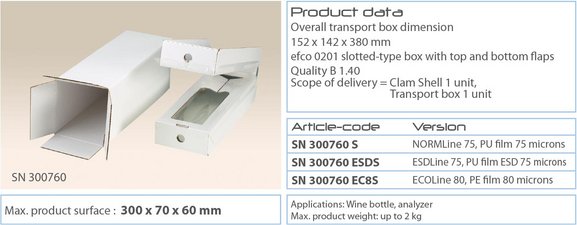

300 x 70 mm SN 300760 60 mm ca. 2,0 kg

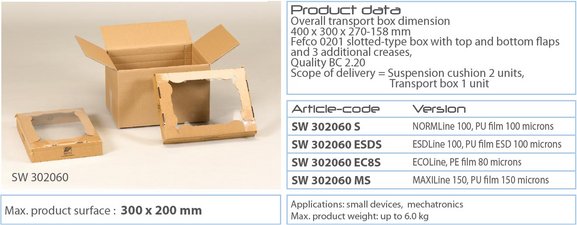

300 x 200 mm SW 302060 60 mm ca. 6,0 kg

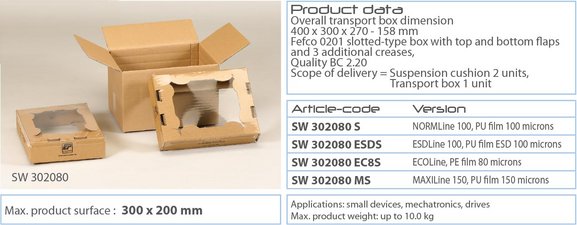

300 x 200 mm SW 302080 80 mm ca. 10 kg

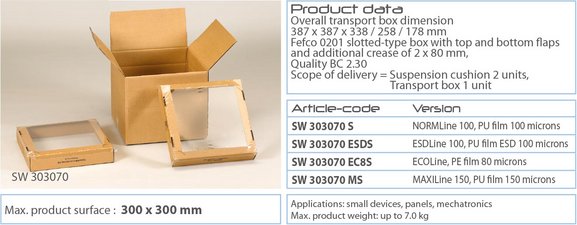

300 x 300 mm SW 303070 70 mm ca. 7,0 kg

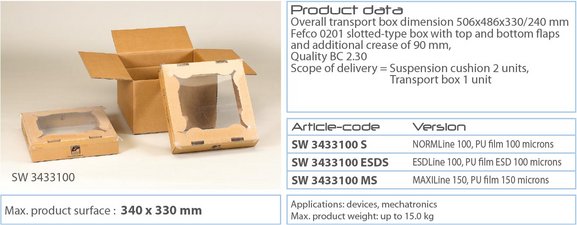

340 x 330 mm SW 3433100 100 mm ca. 15 kg

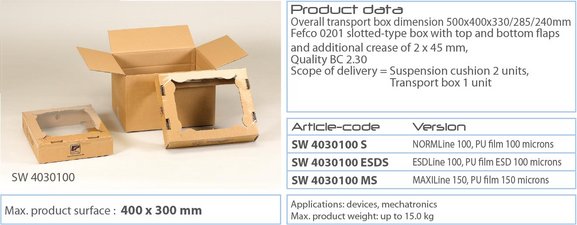

400 x 300 mm SW 4030100 100 mm ca. 15 kg

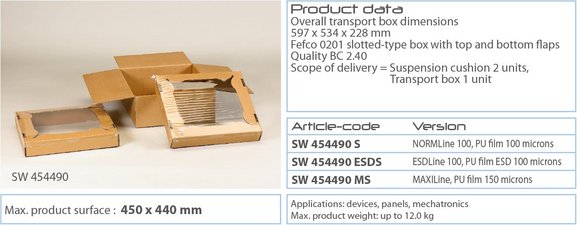

450 x 440 mm SW 454490 90 mm ca. 12 kg

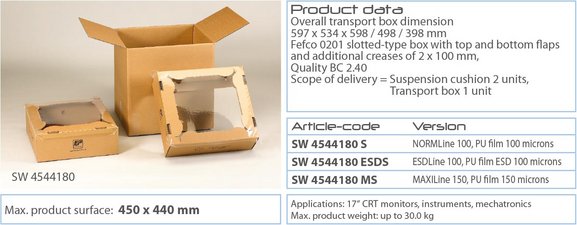

450 x 440 mm SW 4544180 180 mm ca. 30 kg

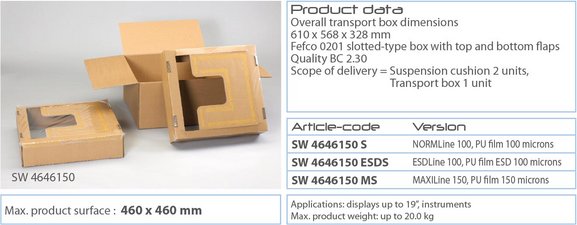

460 x 460 mm SW 4646150 150 mm ca. 20 kg

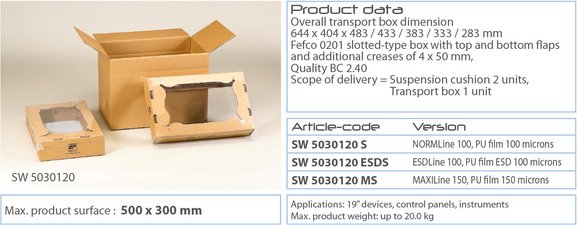

500 x 300 mm SW 5030120 120 mm ca. 20 kg

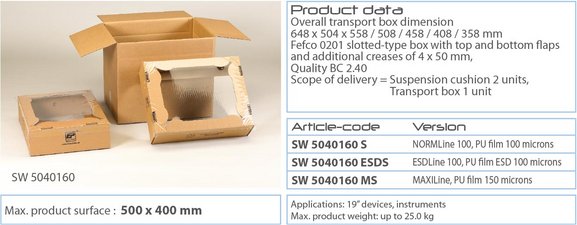

500 x 400 mm SW 5040160 160 mm ca. 25 kg

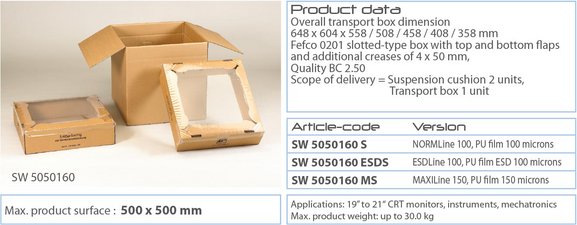

500 x 500 mm SW 5050160 160 mm ca. 30 kg

Available in sets of 50 and more (2 cushions, 1 box). Special sizes on request.
All boxes have additional adjustable heights. For modification requests call us.
