Application

Light and flat products of up to 4.0 kg (normally),
requiring medium level protection.

Features

The packaging will adapt to even the most
unusual product contours.

Advantages

The amount of packaging types is
substantially reduced.

Emba-Flex® – The Retention Packaging

  • high-level protection for the most varied products and contours
  • reduction of packaging diversity by up to 90%
  • transport boxes with crash-lock base guarantee fast handling
  • quick fastening avoids box gluing
  • reduction of process costs (procurement, storing, shipment)
  • environment-friendly, can be disposed of with waste paper
  • reusable (e.g. for repair services)
  • professional appearance
  • economical due to standard program (no tool costs)

The method

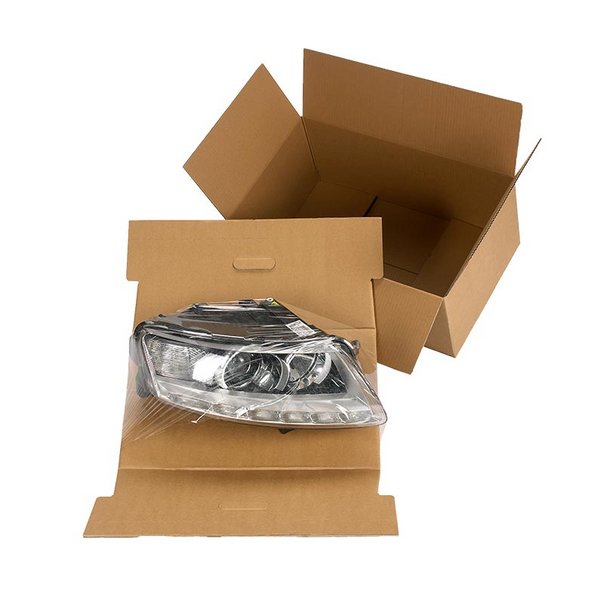

The special stretch mechanism ensures that the film fixes the product firmly to the corrugated cardboard format, so avoiding any slipping. The highly flexible but practically tear-free stretch film clings perfectly to the different product contours. This reduces your packaging diversity by up to 90%. The special film is highly flexible and has unprecedented shrink behaviour after stretching.
Even when stretched to an enormous extent the film almost returns back into it’s original shape without a decrease in retention force.

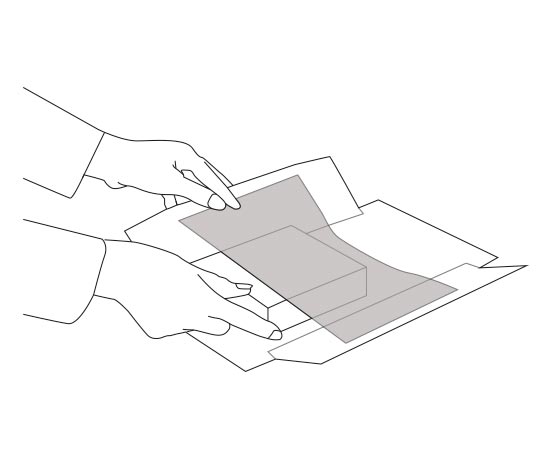

Fold up sides and insert product ...

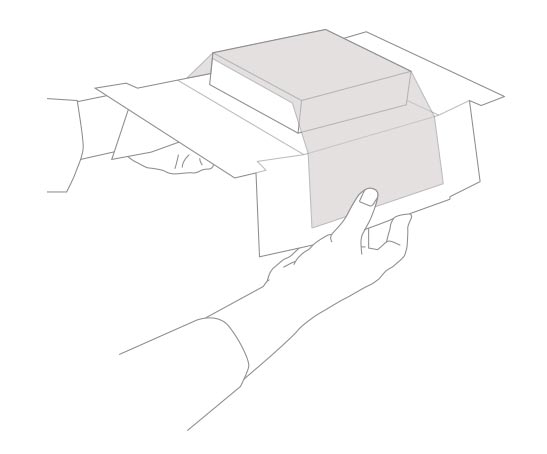

fold down both sides completely --> foil stretched ...

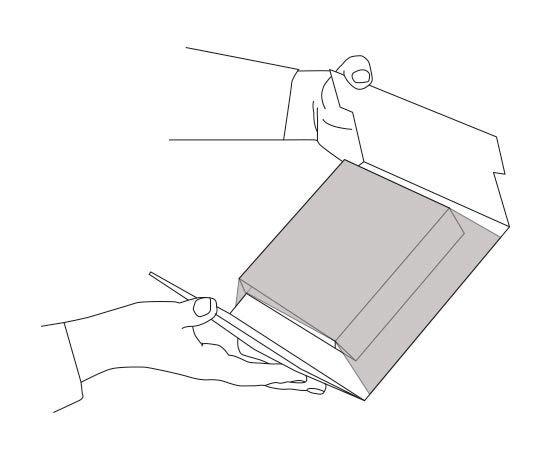

fold up both sides and place it in the transport box.

The immediate delivery program

Maximum product size Article-Code Maximum Product Size

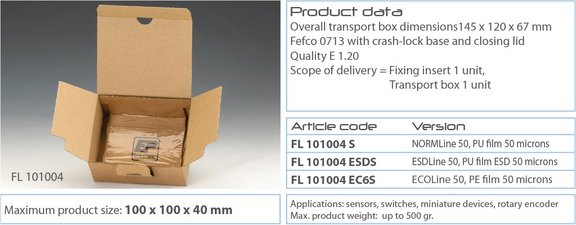

100 x 100 x 40mm FL 101004 ca. 0,5 kg

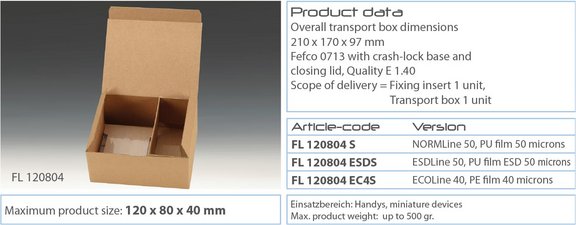

120 x 80 x 40mm FL 120804 ca. 0,5 kg

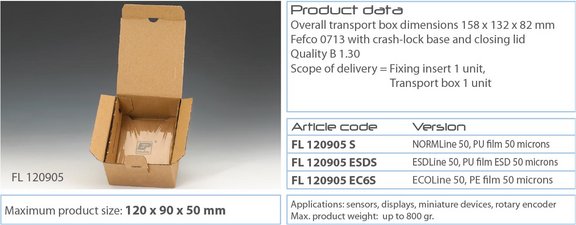

120 x 90 x 50mm FL 120905 ca. 0,8 kg

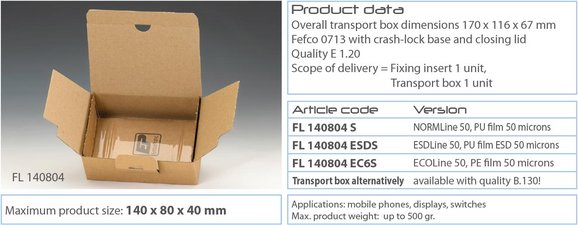

140 x 80 x 40mm FL 140804 ca. 0,5 kg

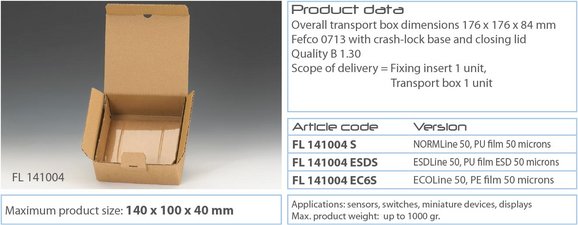

140 x 100 x 40mm FL 141004 ca. 1,0 kg

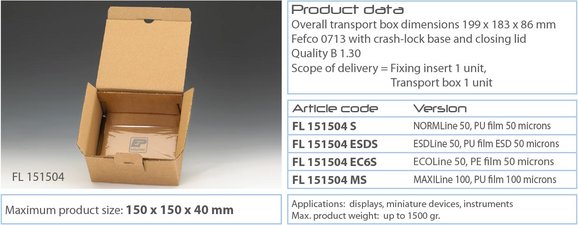

150 x 150 x 40mm FL 151504 ca. 1,5 kg

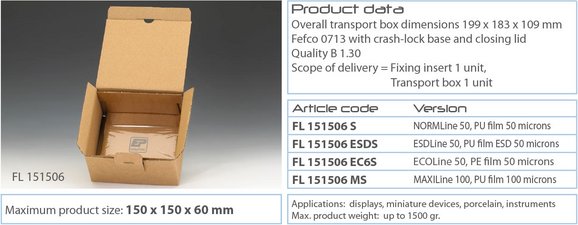

150 x 150 x 60mm FL 151506 ca. 1,5 kg

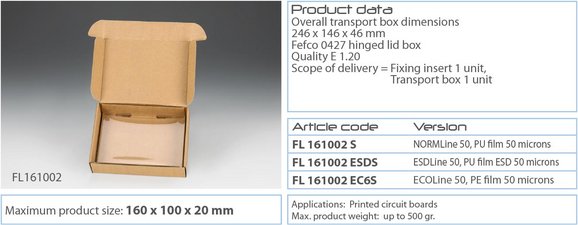

160 x 100 x 20mm FL 161002 ca. 0,5 kg

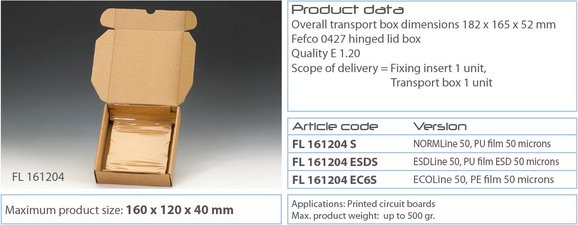

160 x 120 x 40mm FL 161204 ca. 0,5 kg

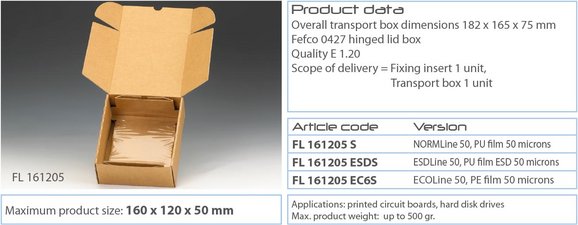

160 x 120 x 50mm FL 161205 ca. 0,5 kg

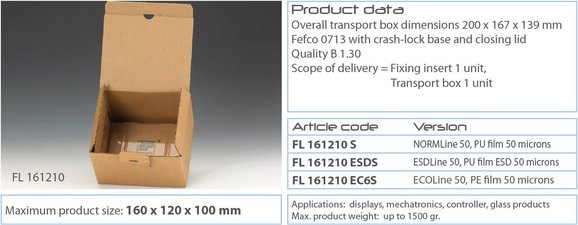

160 x 120 x 100mm FL 161210 ca. 1,5 kg

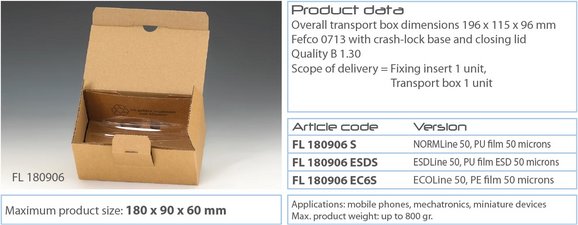

180 x 90 x 60mm FL 180906 ca. 0,8 kg

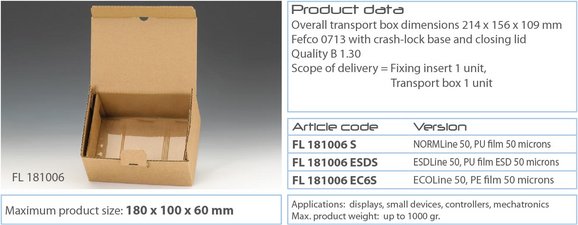

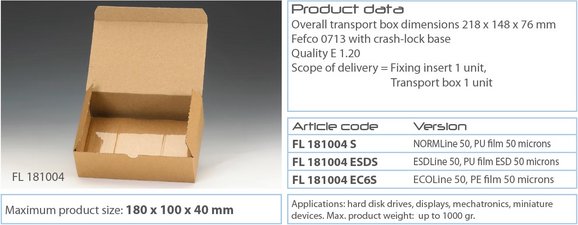

180 x 100 x 40mm FL 181004 ca. 1,0 kg
180 x 100 x 60mm FL 181006 ca. 1,0 kg

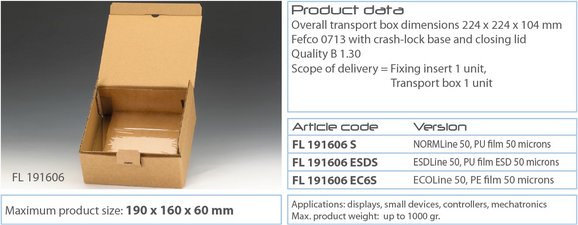

190 x 160 x 60mm FL 191606 ca. 1,0 kg

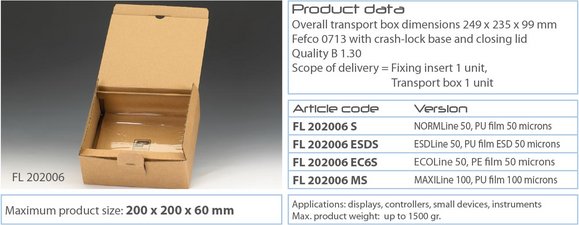

200 x 200 x 60mm FL 202006 ca. 1,5 kg

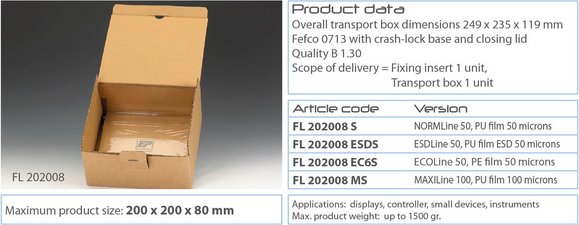

200 x 200 x 80mm FL 202008 ca. 1,5 kg

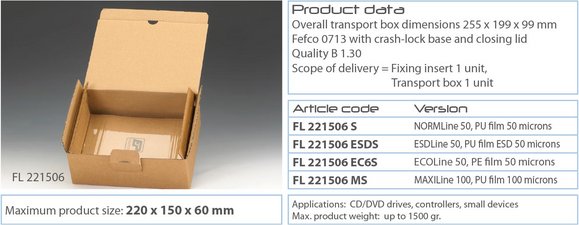

220 x 150 x 60mm FL 221506 ca. 1,5 kg

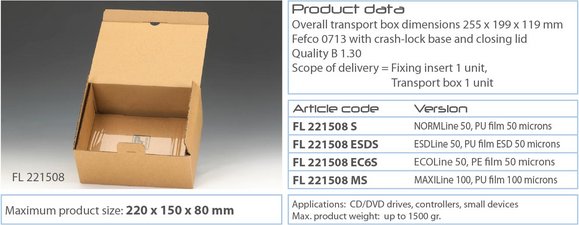

220 x 150 x 80mm FL 221508 ca. 1,5 kg

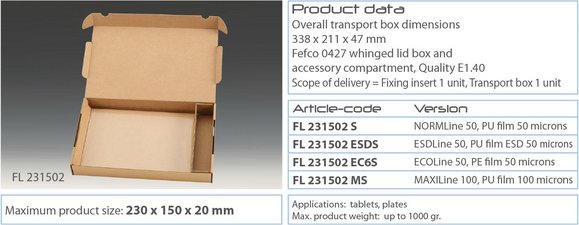

230 x 150 x 20mm FL 231502 ca. 1,0 kg

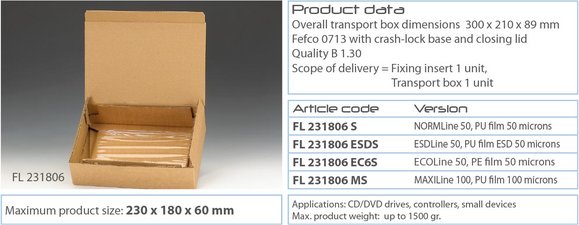

230 x 180 x 60mm FL 231806 ca. 1,5 kg

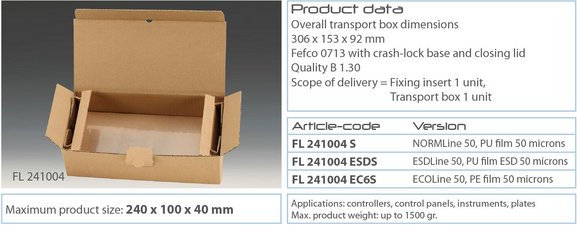

240 x 100 x 40mm FL 241004 ca. 1,5 kg

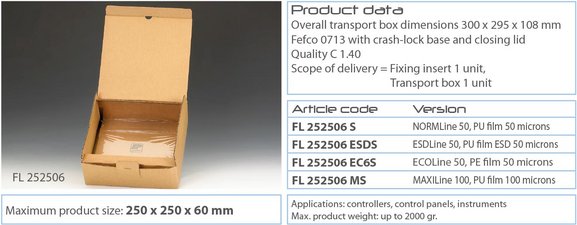

250 x 250 x 60mm FL 252506 ca. 2,0 kg

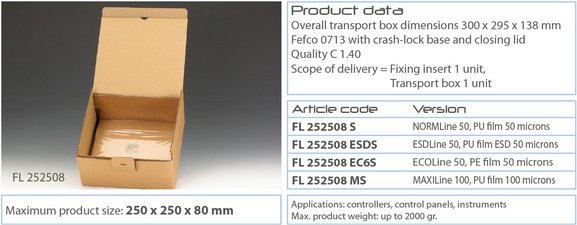

250 x 250 x 80mm FL 252508 ca. 2,0 kg

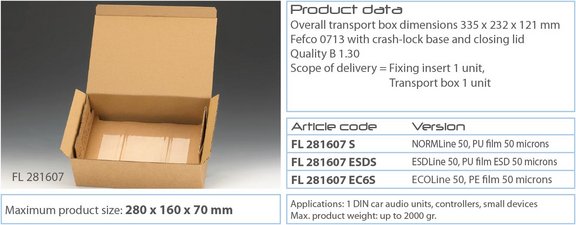

280 x 160 x 70mm FL 281607 ca. 2,0 kg

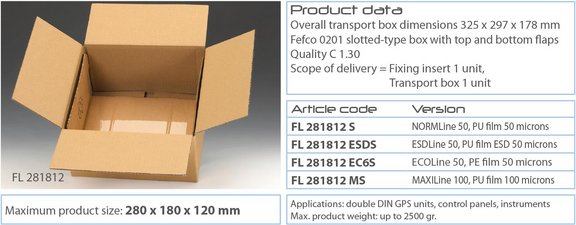

280 x 180 x 120mm FL 281812 ca. 2,5 kg

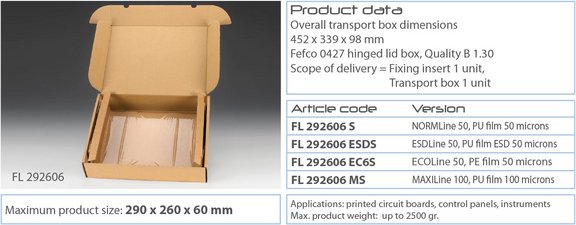

290 x 260 x 60mm FL 292606 ca. 2,5 kg

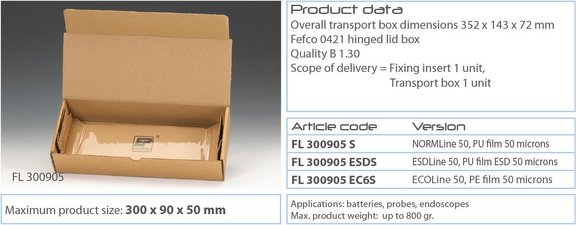

300 x 90 x 50mm FL 300905 ca. 0,8 kg

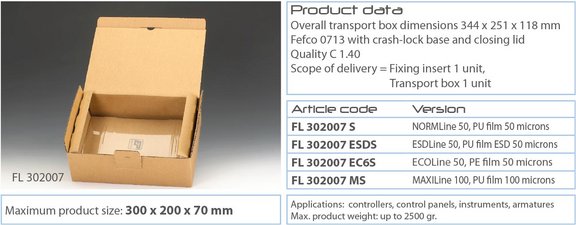

300 x 200 x 70mm FL302007 ca 2,5 kg

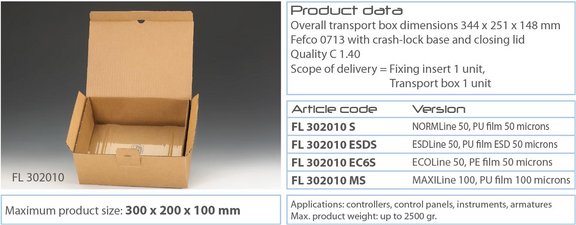

300 x 200 x 100mm FL 302010 ca. 2,5 kg

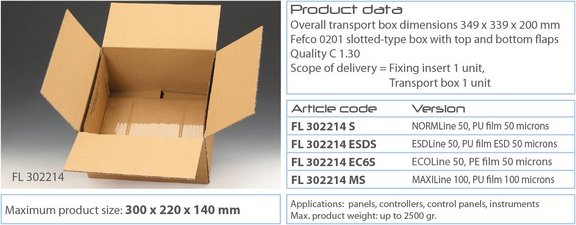

300 x 220 x 140mm FL 302214 ca. 2,5 kg

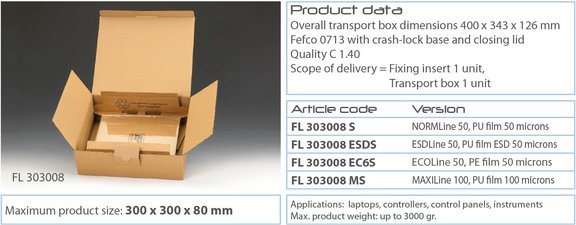

300 x 300 x 80mm FL 303008 ca. 3 kg
310 x 210 x 40mm FL 311204 ca. 2,5 kg

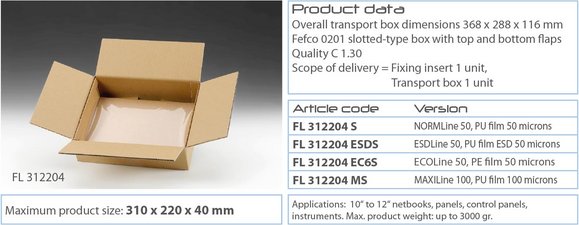

310 x 220 x 40mm FL 312204 ca. 3 kg

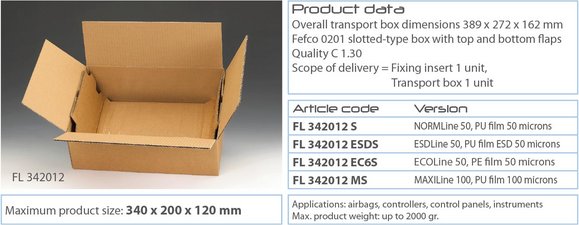

340 x 200 x 120mm FL 342012 ca. 2 kg

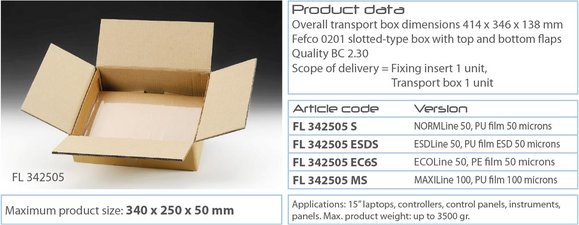

340 x 250 x 50mm FL 342505 ca. 3,5 kg

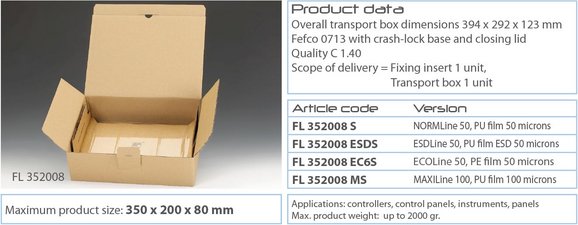

350 x 200 x 80mm FL 352008 ca. 2 kg

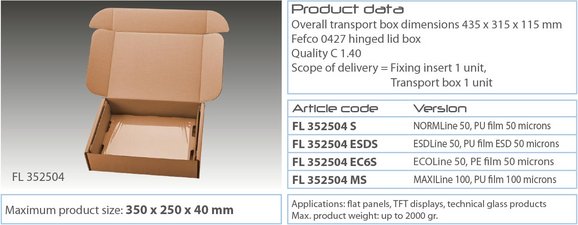

350 x 250 x 40mm FL 352504 ca. 2 kg

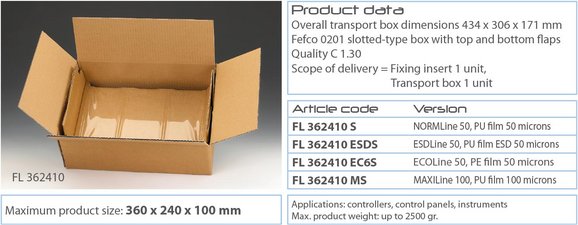

360 x 240 x 100mm FL 362410 ca. 2,5 kg

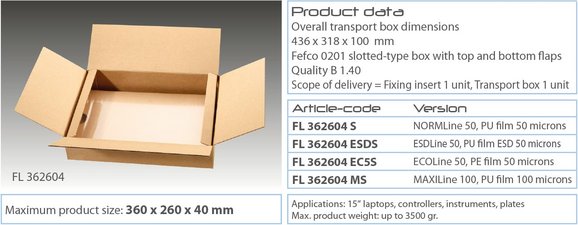

360 x 260 x 40mm FL 362604 ca. 3,5 kg
380 x 250 x 80mm FL 382508 ca. 3 kg
400 x 200 x 100mm FL 402010 ca. 3 kg
400 x 250 x 100mm FL 402510 ca. 3,5 kg
400 x 300 x 50mm FL 403005 ca. 4,5 kg
400 x 300 x 60mm FL 403006 ca. 2,5 kg
400 x 320 x 110mm FL 403211 ca. 5 kg
470 x 300 x 50mm FL 473005 ca. 4,5 kg
500 x 320 x 150mm FL 503215 ca. 5 kg
500 x 400 x 100mm FL 504010 ca. 5 kg
510 x 230 x 50mm FL 512305 ca. 2,5 kg
510 x 300 x 50mm FL 513005 ca. 2,5 kg

Available in sets of 50 and more (1 insert, 1 box). Special sizes on request.
