Application

Light and flat products of up to 2.0 kg (normally),
requiring medium level protection.

Features

With transport box attached.
The packaging will adapt to even the most unusual
product contours.

Advantages

Major storage space savings.
High-speed packaging.
The amount of packaging types
is substantially reduced.

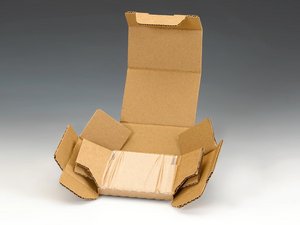

Emba-Quick®

The one-piece retention packaging

  • packing in 10 seconds
  • no extra transport box needed
  • quick fastening avoids box gluing
  • optionally with self-adhesive closure
  • high-quality printing possible
  • can be equipped with a hollow bottom or extra side pocket for accessories
  • reduction of process costs (procurement, storing, shipment)
  • reusable
  • environment-friendly, can be disposed of with waste paper
  • professional appearance
  • economical due to standard program (no tool costs)

The method

The same special stretch mechanism as for Emba-Flex®. The stretch film fixes the product firmly to the corrugated cardboard format. Emba-Quick® comprises an attached transport box.
This solution saves space, time and costs.

Insert product ...

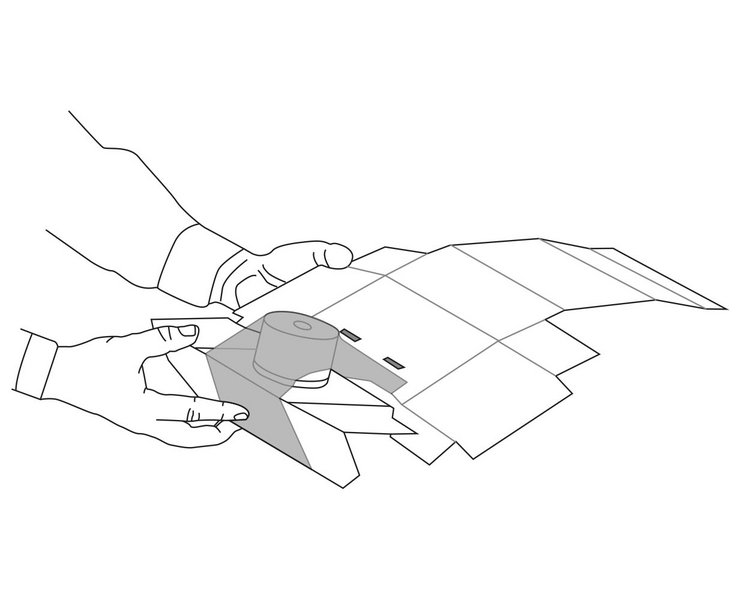

fold over the end flap
to tension the film
around the product
fold again so that the retention
sits within the integrated outer
carton

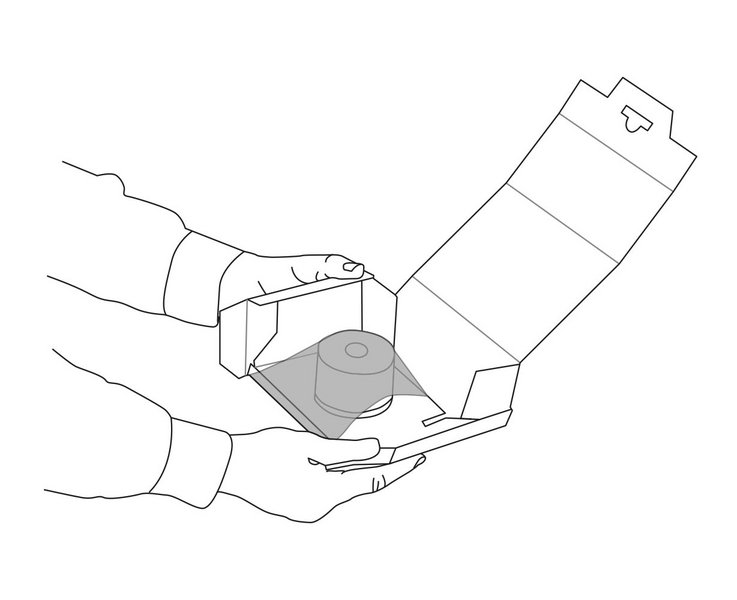

fold up sides ...
fold up the lid and wrap
around the product ...

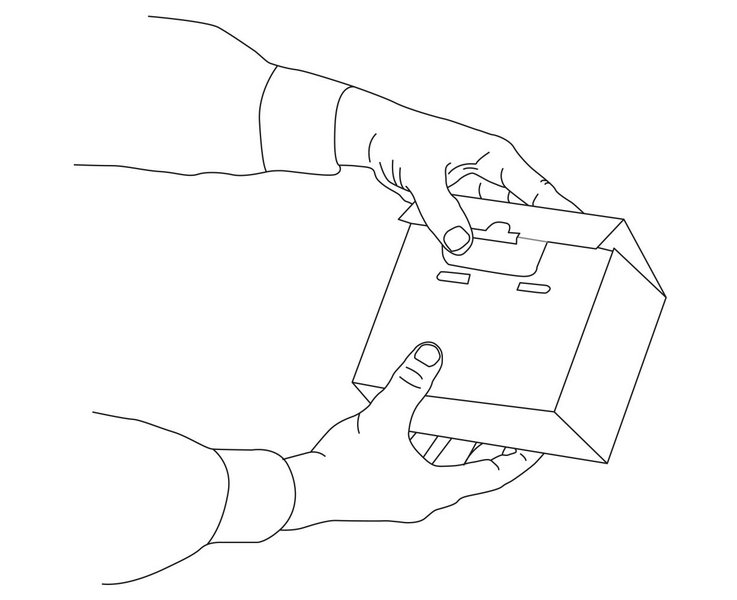

secure the locking flap
to complete the pack.

Application examples

Emba-Quick® adapts optimally to the most varied product contours like a second skin. New products from your company can often be packed immediately with existing packaging sizes. Also product accessories can be packed securely in accessory compartments or hollow bottom. Whether it’s a manual, cables or remote controls, everything is securely fixed in position. In addition to our immediate delivery program listed in the table below we also offer existing special packaging as well as new developments according to your individual needs.

The immediate delivery programm

Maximum product size (mm) Article Codes (NORM- / ESD- / ECOLine) Max. Product Weight

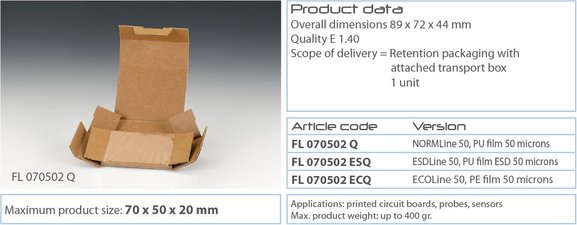

70 x 50 x 20 mm FL 070502 Q / ESQ / ECQ ca. 0,4 kg

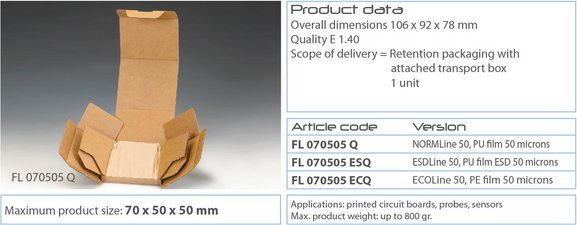

70 x 50 x 50 mm FL 070505 Q / ESQ / ECQ ca. 0,8 kg

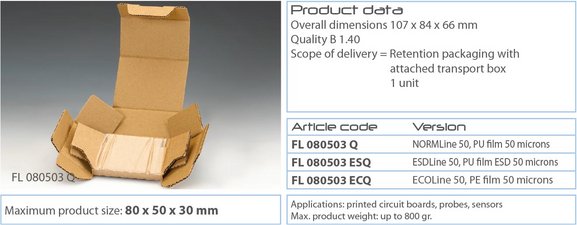

80 x 50 x 30 mm FL 080503 Q / ESQ / ECQ ca. 0,8 kg

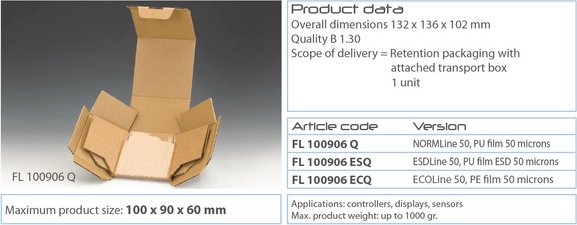

100 x 90 x 60 mm FL 100906 Q / ESQ / ECQ ca. 1,0 kg

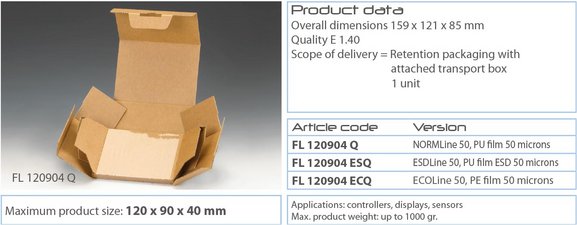

120 x 90 x 40 mm FL 120904 Q / ESQ / ECQ ca. 1,0 kg

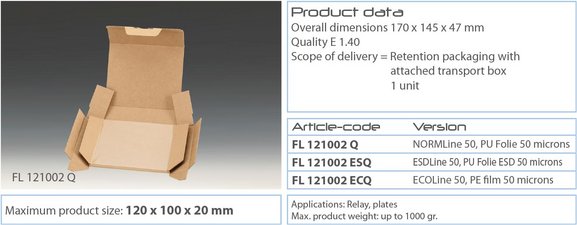

120 x 100 x 20 mm FL 121002 Q / ESQ / ECQ ca. 1,0 kg

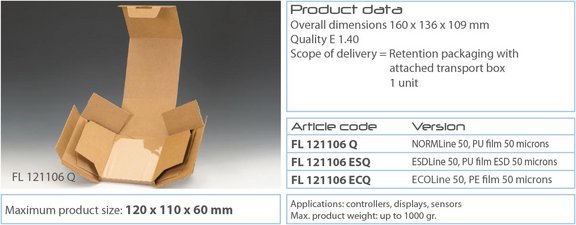

120 x 110 x 60 mm FL 121106 Q / ESQ / ECQ ca. 1,0 kg

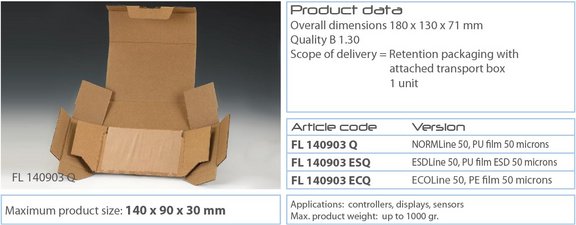

140 x 90 x 30 mm FL 140903 Q / ESQ / ECQ ca. 1,0 kg

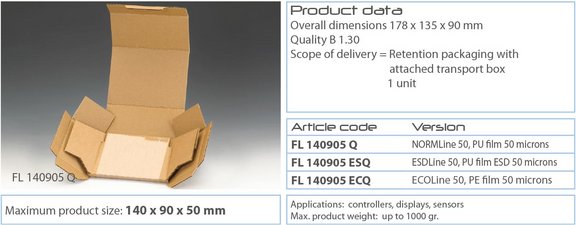

140 x 90 x 50 mm FL 140905 Q / ESQ / ECQ ca. 1,0 kg

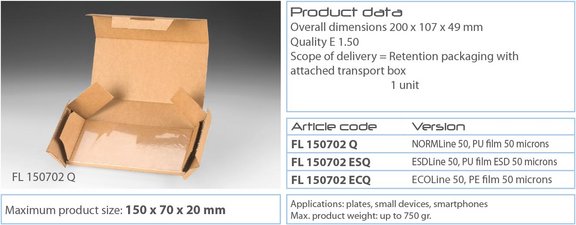

150 x 70 x 20 mm FL 150702 Q / ESQ / ECQ ca. 0,8 kg

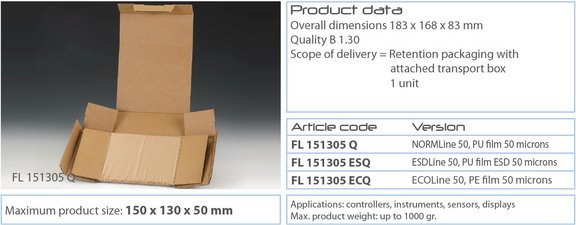

150 x 130 x 50 mm FL 151305 Q / ESQ / ECQ ca. 1,0 kg

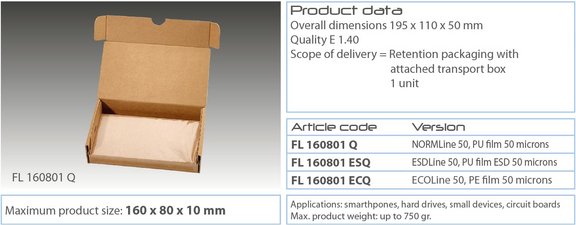

160 x 80 x 10 mm FL 160801 Q / ESQ / ECQ ca. 0,7 kg

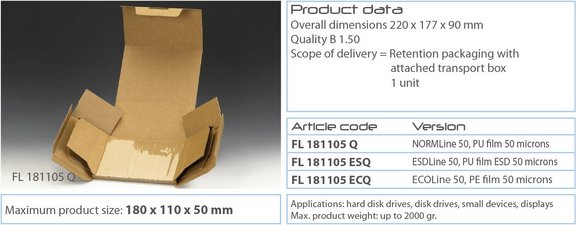

180 x 110 x 50 mm FL 181105 Q / ESQ / ECQ ca. 2,0 kg

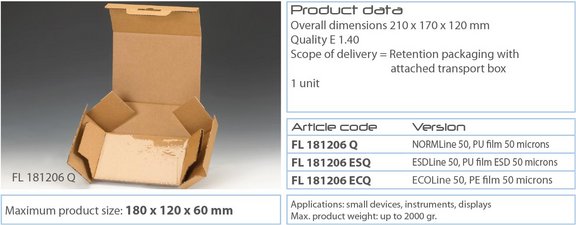

180 x 120 x 60 mm FL 181206 Q / ESQ / ECQ ca. 2,0 kg

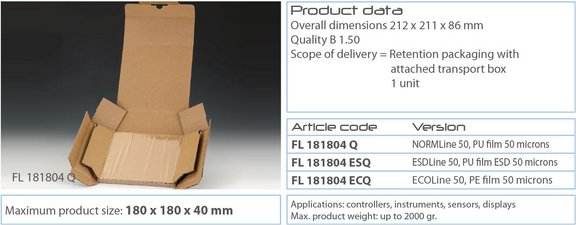

180 x 180 x 40 mm FL 181804 Q / ESQ / ECQ ca. 2,0 kg

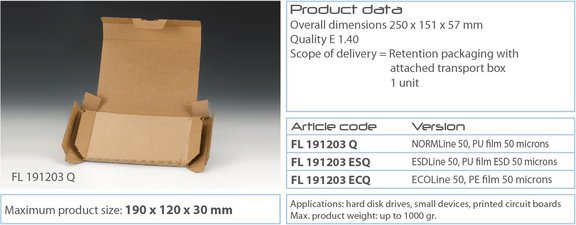

190 x 120 x 30 mm FL 191203 Q / ESQ / ECQ ca. 1,0 kg
200 x 120 x 20 mm FL 201202 Q / ESQ / ECQ ca. 1,5 kg

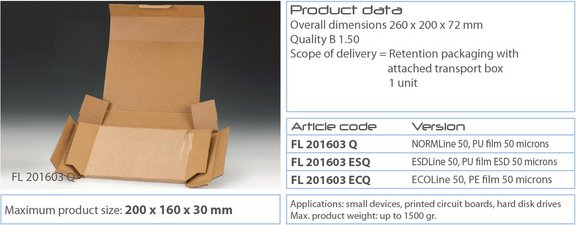

200 x 160 x 30 mm FL 201603 Q / ESQ / ECQ ca. 1,5 kg

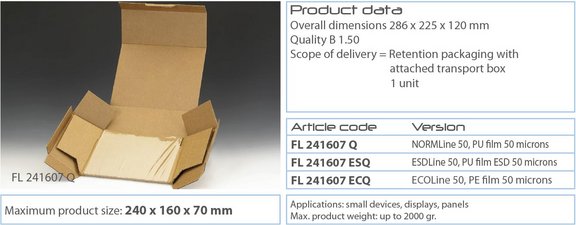

240 x 160 x 70 mm FL 241607 Q / ESQ / ECQ ca. 2,0 kg

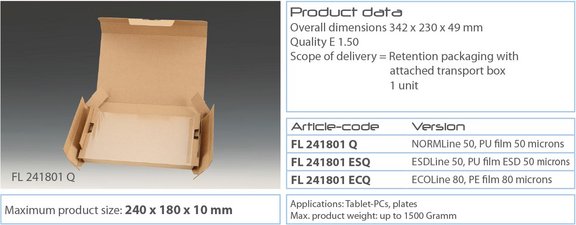

240 x 180 x 10 mm FL 241801 Q / ESQ / ECQ ca. 1,5 kg

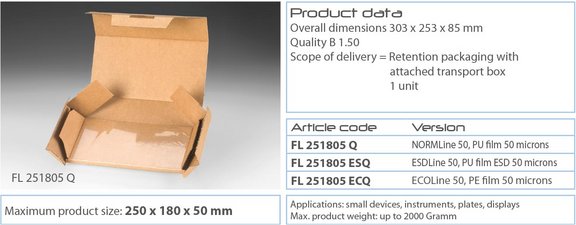

250 x 180 x 50 mm FL 251805 Q / ESQ / ECQ ca. 2,0 kg

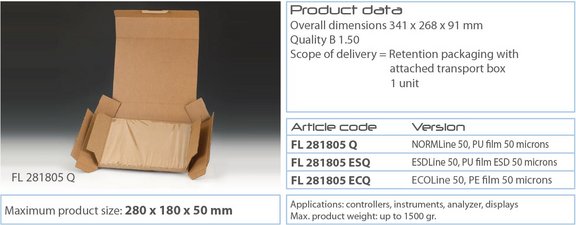

280 x 180 x 50 mm FL 281805 Q / ESQ / ECQ ca. 1,5 kg

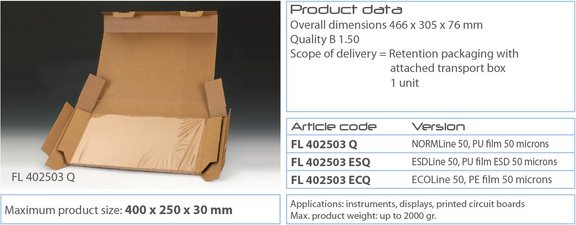

400 x 250 x 30 mm FL 402503 Q / ESQ / ECQ ca. 2,0 kg

Available in units of 50 and more. Special sizes on request.
